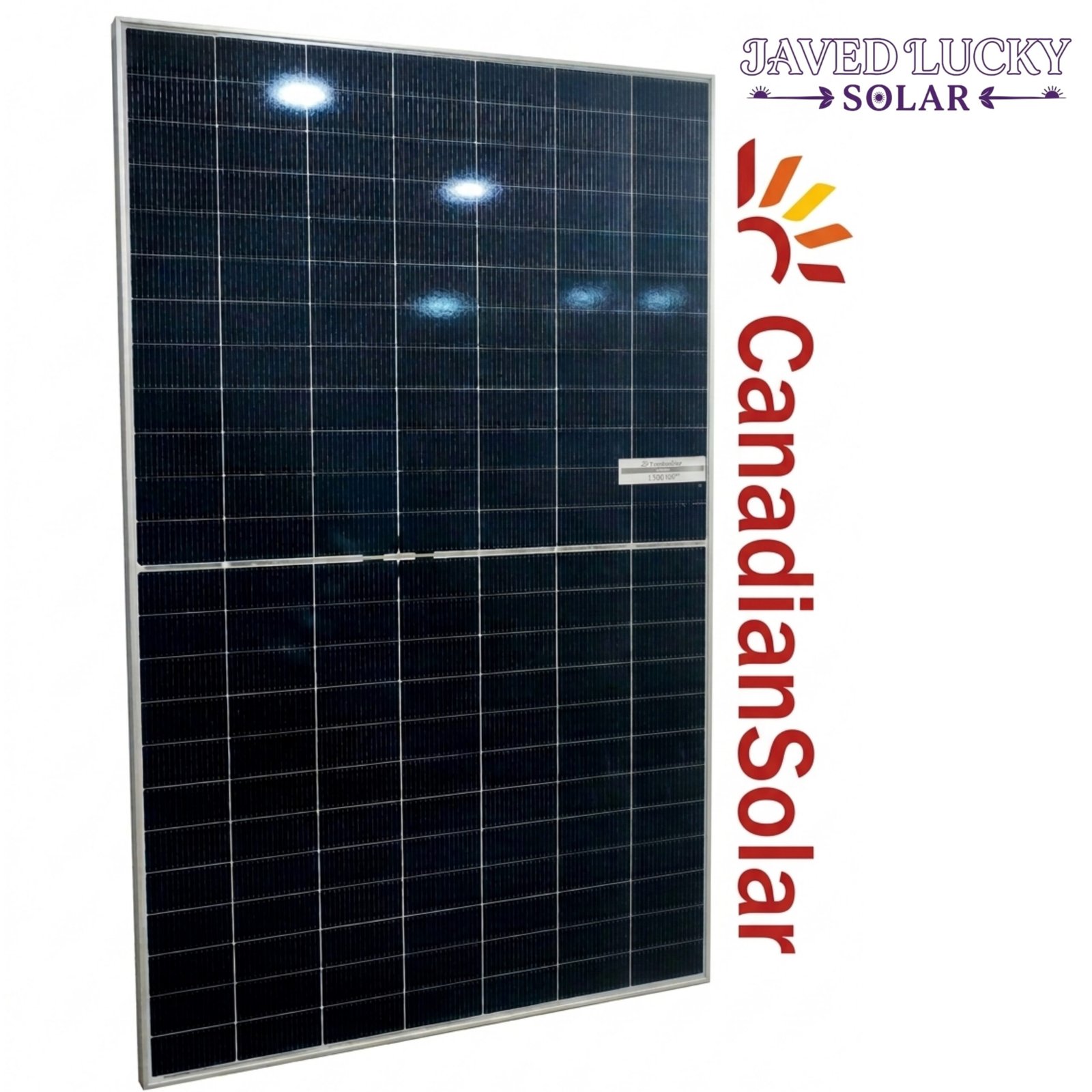

Canadian Solar 585W N-Type TOPCon Bifacial Double Glass
The solar power landscape has evolved dramatically over the last few years, driven by a non-stop quest for higher module efficiency, longer lifespans, and superior performance in high-heat environments. Sitting at the forefront of this revolution is the Canadian Solar 585W N-Type TOPCon Bifacial Double Glass module.
Designed to meet the demands of residential rooftops, commercial establishments, and massive utility-scale solar farms alike, this high-wattage module brings together advanced material science and practical engineering.
1. Core Technological Innovations
Understanding what sets this panel apart requires a look at the key technologies packed into its frame.
N-Type TOPCon Cell Architecture
For over a decade, standard P-type PERC (Passivated Emitter and Rear Cell) panels dominated the market. However, P-type technology hit a physical limit in efficiency. The shift to N-type technology using TOPCon (Tunnel Oxide Passivated Contact) unlocks higher theoretical efficiency limits while virtually eliminating early degradation issues.
-
Zero Light-Induced Degradation (LID): Traditional P-type panels suffer power loss immediately after exposure to sunlight due to boron-oxygen reactions. N-type silicon uses phosphorus instead of boron, completely avoiding LID.
-
Higher Conversion Efficiency: TOPCon cells utilize an ultra-thin tunnel oxide layer that minimizes electron recombination, pushing module efficiency up to 22.5%–23.8%.
Bifacial Power Generation
Unlike conventional monofacial panels that only absorb light hitting the front side, a bifacial panel produces energy from both sides.
-
Front-Side Power: Generates the core rated 585 Watts output under Standard Test Conditions (STC).
-
Rear-Side Harvesting: Captures reflected ambient light (albedo) off surfaces like white rooftops, concrete, sand, or bright soil.
-
Bifaciality Factor (up to 85%): The rear side produces up to 85% as much power as the front side under equal light exposure, generating an extra 10% to 30% yield boost depending on ground reflectance and mounting height.
Double Glass (Dual-Glass) Construction
Replacing the traditional plastic backsheet with a secondary layer of fully toughened glass transforms the structural integrity of the panel.
-
Hermetic Environment: Dual-glass encapsulates the silicon solar cells between two impervious barriers, preventing moisture ingress—the leading cause of PID (Potential-Induced Degradation) and internal corrosion.
-
Fire Safety: Achieves Class A fire rating, making it safer for high-density urban commercial roofs.
-
Micro-Crack Resistance: Double glass provides balanced mechanical strength, preventing localized micro-cracks during installation or extreme weather conditions like high wind and snow loads.
2. Key Technical Specifications
| Feature / Metric | Specification Details |
| Model Series | CS6W-585MB-AG / HiKu7 TOPCon Series |
| Nominal Power (Pmax) | 585 Watts |
| Cell Type | N-Type TOPCon Monocrystalline |
| Module Efficiency | Up to 22.6% – 23.8% |
| Glass Type | Double Glass (Dual 2.0mm heat-strengthened glass) |
| Bifaciality Factor | Up to 85% |
| Temperature Coefficient (Pmax) | −0.29% / °C (Superior hot-weather performance) |
| Junction Box Rating | IP68 (3 bypass diodes) |
| Mechanical Load Rating | 5400 Pa (Snow/Front) / 2400 Pa (Wind/Back) |
| Product Warranty | 12 Years Material & Workmanship |
| Linear Power Warranty | 30 Years (typically ~1% year 1, then ≤0.4% annual degradation) |
3. Real-World Performance Benefits
Exceptional High-Temperature Tolerance
Solar panels naturally lose power output as their ambient temperature rises. Standard panels carry a temperature coefficient around −0.35%/°C to −0.40%/°C. The Canadian Solar 585W TOPCon module boasts an outstanding −0.29%/°C temperature coefficient. In blistering summer conditions where roof temperatures easily top 50°C, this panel retains noticeably higher power production compared to legacy modules.
Superior Low-Light Performance
Due to the high electron mobility of N-type silicon and optimized cell surface passivation, these panels initiate power generation earlier in the morning and remain active longer in the late afternoon. They also maintain strong efficiency under overcast skies or indirect ambient lighting conditions.
Long-Term Value & Low LCOE
Levelized Cost of Energy (LCOE) is the ultimate metric for calculating solar ROI. By combining higher power density (585W per panel cuts mounting structure, cabling, and land requirements per megawatt) with a 30-year operational life, the cost per kilowatt-hour drops significantly.
4. Ideal Application Scenarios
-
Commercial & Industrial Roofs: High-wattage output optimizes limited roof area, giving factory owners or commercial plazas maximum generation capacity per square foot.
-
Elevated Rooftop Mounts: Mounting these panels 3 to 6 feet above bright concrete roofs creates the ideal setup to maximize rear-side bifacial gain.
-
Agricultural & Ground-Mounted Utility Systems: Ground installations on sandy, grassy, or gravel terrain allow reflection to bounce into the rear glass layer, maximizing daily kWh yield.
-
Harsh Environmental Zones: Coastal regions with high salt spray, desert regions with blowing sand, or high-humidity regions benefit directly from the double-glass seal that shields internal circuits.
